Accurion Sandwich Series

High performance floor platforms

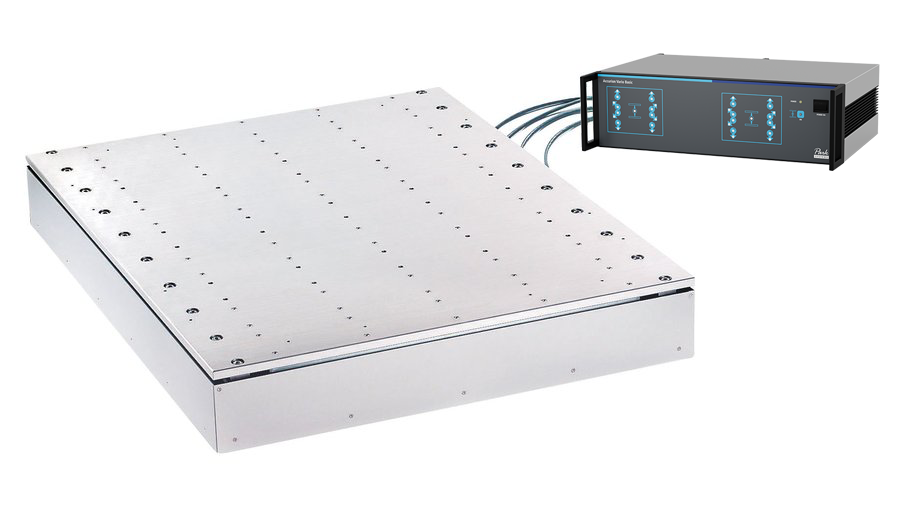

Sandwich platforms feature compact dimensions and excellent isolation performance. Each Sandwich includes precision machined 15 mm thick top and bottom plates, surrounding 4 to 8 integrated vibration isolation elements as well as an external control unit. The quantity of vibration isolation elements defines the load capacity of the platform. A load range of up to 1200 kg can be realized.

Brochure
Request for Quote
×

Solutions for heavy load equipment > 600 kg (1,300 lbs)

The heavy load isolation systems are designed for installation on the floor directly underneath the application. They are the ideal solution for the vibration isolation of scanning electron microscopes and similar equipment. Available products are isolation platforms and heavy duty vibration isolation elements. To select the required isolation system, the actual weight of the application equipment, load distribution and further parameters are key. Customized versions with modified dimensions or increased load ranges are available on request.

Sales Channel

W.A.V.E (World of Anti Vibration Engineering)

In regards to sales and consulting of the heavy load isolation products we are cooperating with W.A.V.E. who focus on the active vibration isolation of midsize and heavyweight equipment. With nearly two decades working in this business, W.A.V.E. has lots of competence and experience to provide the most appropriate solution meeting customer requirements. In addition, W.A.V.E. provides expertise in performing and evaluating professional vibration measurements.

×

Key Features

  • Active Vibration Isolation in six degrees of freedom
  • No natural low frequency resonance – excellent vibration isolation characteristics in the low frequency range
  • Settling time only 0.3 s
  • Active isolation starts at 1 Hz (passive isolation > 200 Hz)
  • No compressed air required – power supply only
  • Excellent position stability and stiffness
Transmission_Curve_Heavy_Load

Performance Demonstration
