Perovskite

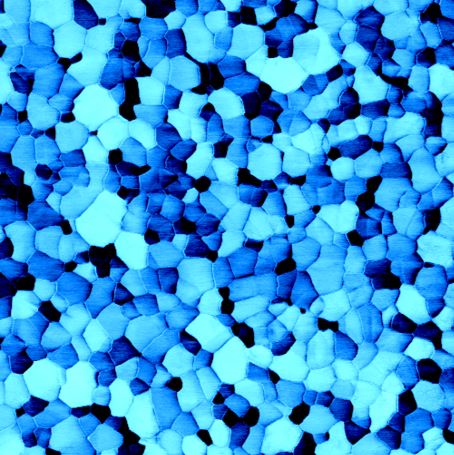

A polycrystalline perovskite thin film with rough, grain-based morphology that exhibits strong photoresponsive electrical behavior.

Photocurrent mapping (PCM) using laser on/off modulation, combined with Sideband KPFM, directly visualizes light-induced current and surface potential changes, while line profiles correlate these electrical contrasts between illuminated and dark regions.

Scan Conditions

- System: NX10

- Scan Mode: PCM, Sideband KPFM

- Scan Size: 2.5 µm×2.5 µm

- Scan Rate: 0.5 Hz

- Pixels: 256×256

- Cantilever: NSC36B Cr-Au

(k=2 N/m, f=130 kHz)

Application

Thin Film

Related Products

Related Modes

Photo Current Mapping (PCM) Kelvin Probe Force Microscopy (KPFM)
