High Throughput Electrical Measurements with No Sacrifice in Signal Sensitivity



Summary

With the implementation of QuickStep Scan, the throughput of the Scanning Capacitance Microscopy (SCM) measurement was dramatically increased, as much as ten times the standard SCM scan speeds, without compromising signal sensitivity, spatial resolution or data accuracy. In QuickStep scan, the XY scanner stops at each pixel point to record the data, and it makes a fast jump between the pixel points.



Introduction

Scanning Capacitance Microscopy (SCM) images spatial variations in capacitance. One of the most common applications of SCM is mapping of the carrier concentration on the non-uniformly doped samples.

In semiconductor manufacturing, the ability to characterize the dopant profile is important in identifying causes of failure as well as in making design advancements.

For device characterization, SCM provides the unique ability to measure quantitative 2D dopant profiles.



Structure of SCM

The SCM consists of a conductive metal probe tip and a highly sensitive capacitance sensor in addition to the normal Atomic Force Microscopy (AFM) components. Like Electrostatic Force Microscopy (EFM), SCM applies a voltage between the tip and the sample as in Metal-Oxide-Semiconductor (MOS) structures.

QuickStep Figure1

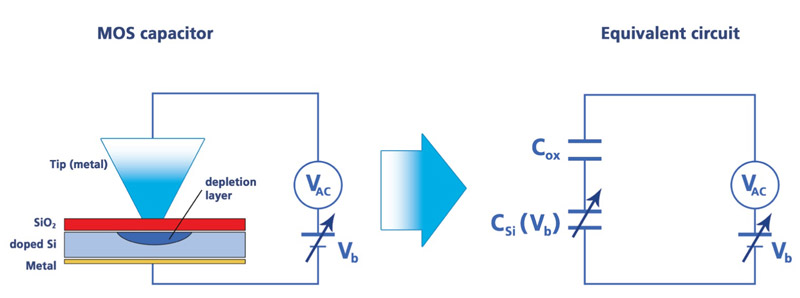

Figure 1. The MOS capacitor is formed by the SCM tip and semiconductor sample



The total capacitance is determined by the oxide thickness and the thickness of depletion layer which depends on the carrier concentration in the silicon substrate and the applied DC voltage between the tip and the semiconductor. The applied AC bias voltage produces capacitance variation at fixed DC bias. The SCM detects differential capacitance (dC/dV) at fixed DC and AC bias voltage as the tip moves across different regions in carrier concentration.

QuickStep Figure2

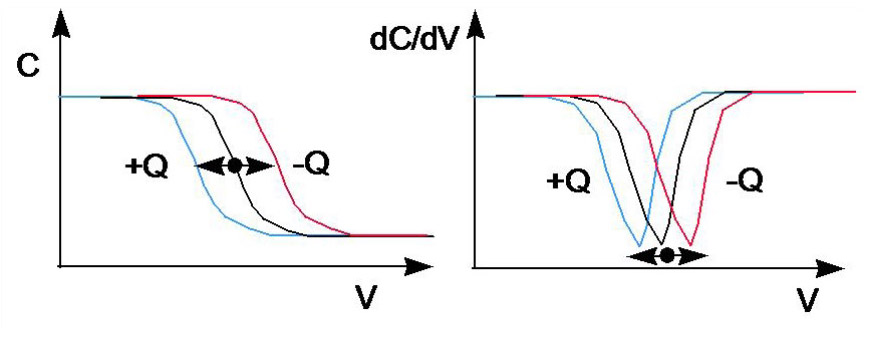

Figure 2. Positively and negatively trapped charges in the insulator on the semiconductor cause a parallel shift in high-frequency C-V and dC/dV curve along the voltage axis



Conventional SCM vs. QuickStep SCM

In order to improve the signal-to-noise ratio, conventional SCM adopts very slow scan speeds as a means of giving the detector enough time to collect data. QuickStep Scan differs from conventional methodology of slow continuous movement. Here, XY scanner stops at each pixel point to record the data and then makes a fast and rapid hop to the next measurement points. This effectively speeds up the scan rate while maintaining the same signal sensitivity of the measurements by conventional SCM at slow scan speeds.

QuickStep Figure3

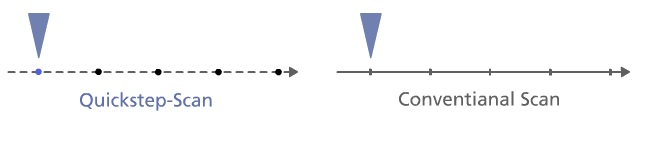

Figure 3. In QuickStep scan, the XY scanner stops at each pixel point to record the data. It makes a fast jump between the pixel points.



Conventional SCM starts to lose the signal integrity as the scan rate increases, evidenced by the divergence between forward and backward scan signal. The QuickStep SCM maintains the same signal sensitivity as that of slow moving conventional SCM despite scanning at 5~10 times faster scan rates.

QuickStep Figure4

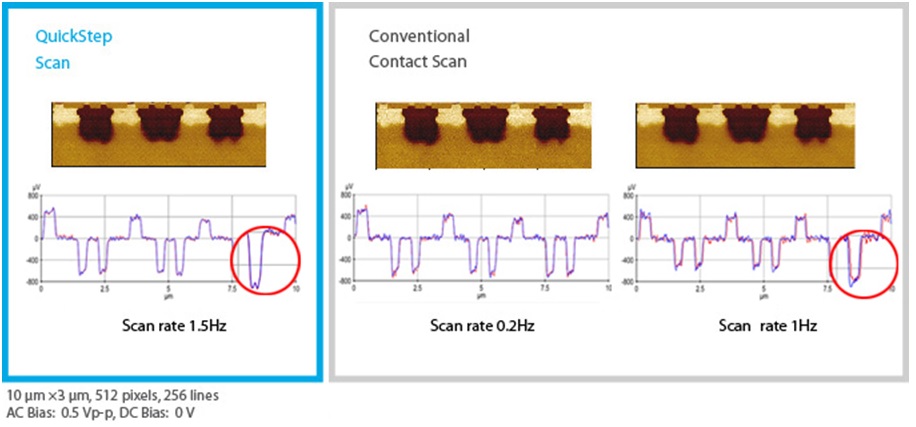

Figure 4. High Throughput QuickStep Scan is ten times faster than conventional SCM scan with no compromise of signal sensitivity, spatial resolution, or data accuracy



In addition, Park SCM is optimized for the best signal-to-noise ratio in the industry by selecting the optimal RF frequency that matches the doping range of sample, over a wide RF band from 600MHz to 2000MHz. From the resonance curve acquired one can maximize the resolution and sensitivity of the SCM probe by choosing the operating frequency which is at the maximum slope.

QuickStep Figure5aQuickStep Figure5b

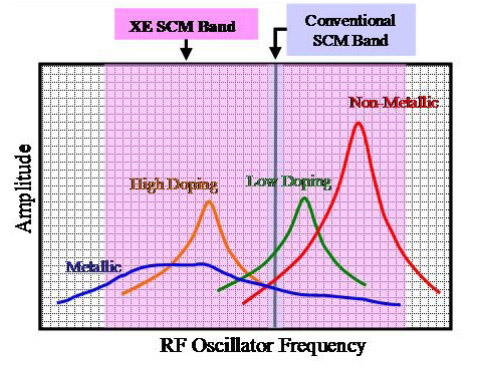

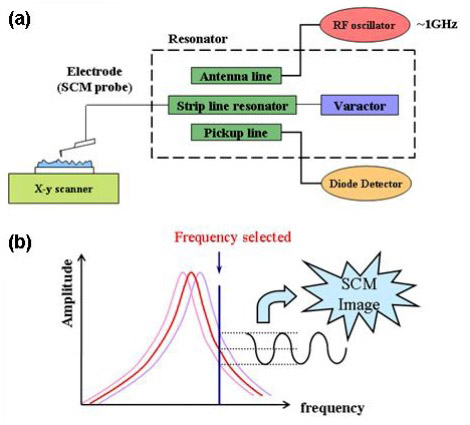

Figure 5. (a) A change in the tip-sample capacitance. (b) Comparison of RF band of operating frequency between Park SCM in red and conventional SCM in blue. Resonance curves of different materials are plotted as a reference.



Even when using a very low AC bias voltages, Park SCM detector suppresses noise level and maintains a high signal-to-noise ratio, enough to tell the doping concentration less than an order of magnitude. This helps the semiconductor and device engineers perform failure analysis (FA) more accurately and efficiently with less effort and time.

QuickStep Figure6

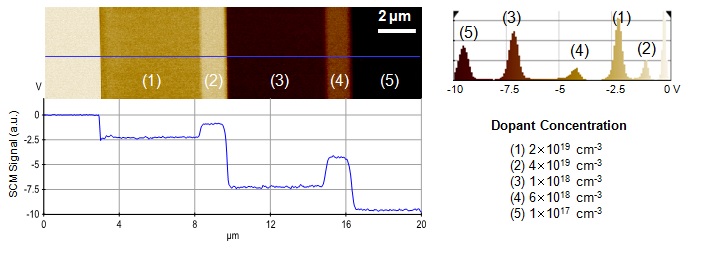

Figure 6. The n-doped silicon sample has areas of varying dopant concentration, imaged by Park SCM. The doping concentration of less than an order of magnitude is clearly distinguishable.



Conclusion: Results of QuickStep SCM by Park NX AFM Series.

In short, QuickStep SCM is several times faster than conventional SCM, without sacrificing any measurement accuracy. It identifies causes of failure analysis, helps innovate the semiconductor design, and detects dopant concentration difference less than an order of magnitude.
